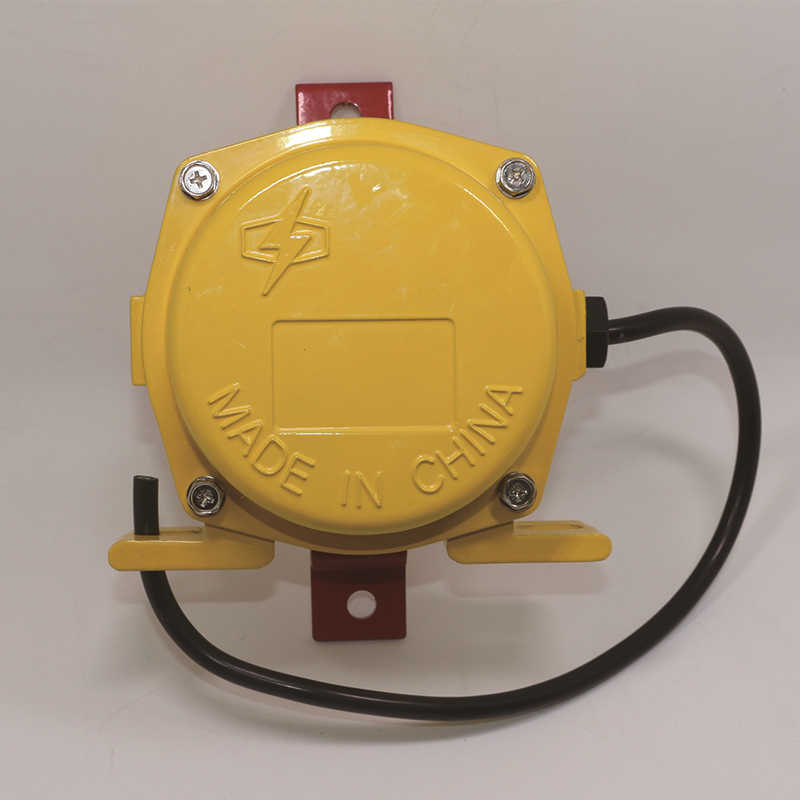

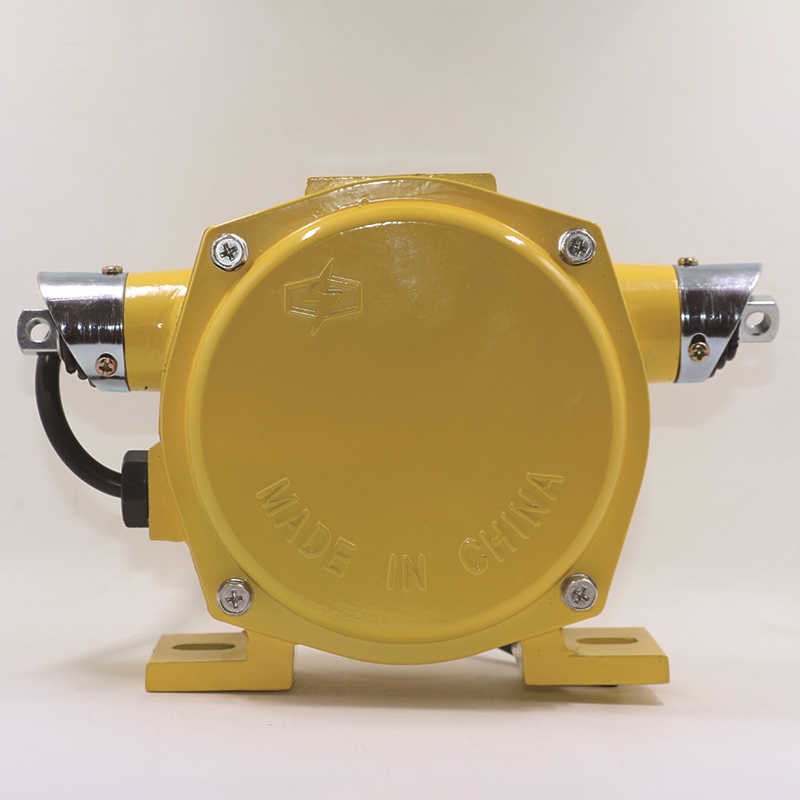

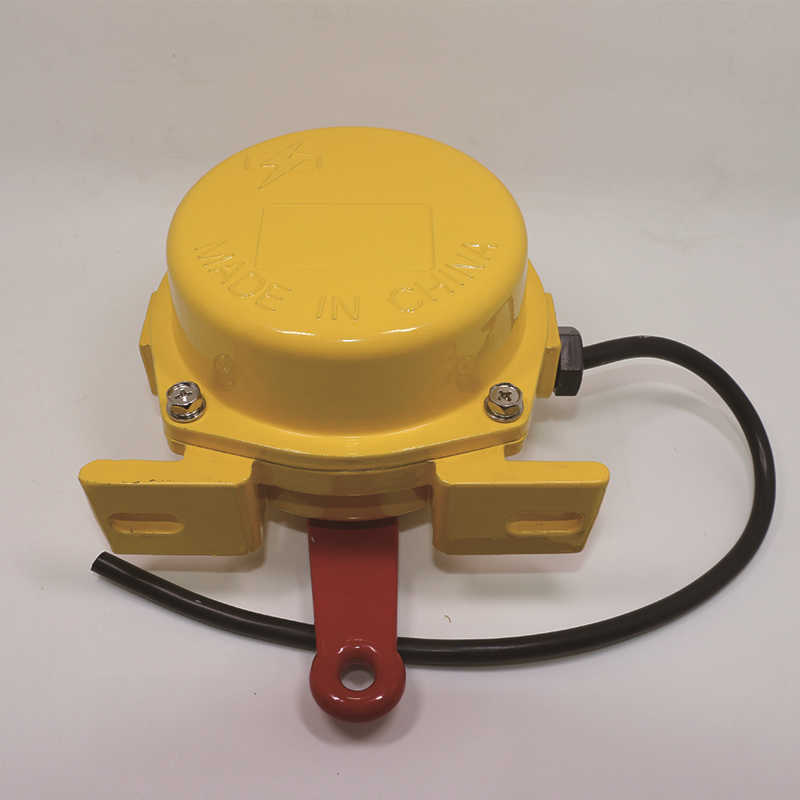

FSSL-III, pull cord switch, bidirectional pull cord switch, 220V

Models: FSSL-III, FSSL-III-1, FSSL-III-2, JYSL-IIII

Product Name: Pull Cord Switch, Bidirectional Pull Cord Switch

The FSSL-III bidirectional pull switch is a protective device used for emergency shutdown of conveyor belts in factories< Br/>

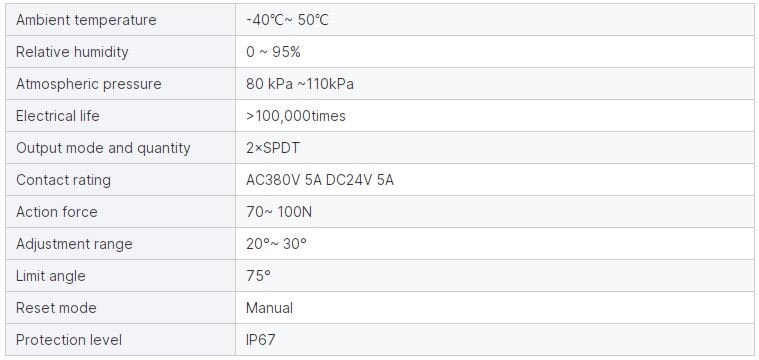

The main parameters are shown in the table below

Number of contacts& Nbsp& Nbsp; Contact capacity& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp; Action Corner& Nbsp& Nbsp; Extreme angle& Nbsp& Nbsp; Action power& Nbsp& Nbsp; Reliability& Nbsp& Nbsp; Protection level

1 normally open and 1 normally closed& Nbsp& Nbsp; AC220V/380V 1-15A& Nbsp& Nbsp; 20°& Nbsp& Nbsp& Nbsp; 75°& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp; 80-100N& Nbsp& Nbsp; 1000000& Nbsp& Nbsp; IP67

Reset method& Nbsp& Nbsp; Altitude& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp; Usage Environment& Nbsp& Nbsp; Atmospheric pressure& Nbsp& Nbsp; Relative humidity& Nbsp& Nbsp; Insulation resistance& Nbsp& Nbsp; Whole machine weight

Two ways:

1. Manual

2. Automatic& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp; Not greater than 200m& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp- 25°-+ 65°& Nbsp& Nbsp& Nbsp; 80-110KPa& Nbsp& Nbsp; No more than 95%& Nbsp& Nbsp; Experiment for 1 minute& Nbsp& Nbsp; 2kg

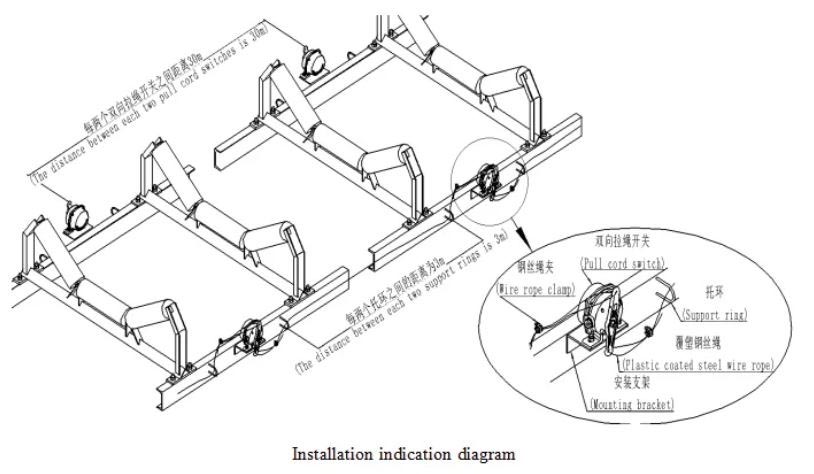

Installation instructions
1. This product is installed along the conveyor belt, and it is recommended to have a 30 meter path between the pull rope switch< Br/>
2. When using plastic wire rope as the pulling rope, the spacing between the steel rings of the control rope should be limited to 3 meters< Br/>
Structural characteristics
1. The shell is made of alloy aluminum casting, with high strength< Br/>
2. The surface is sprayed with plastic, and the paint film has strong adhesion< Br/>
3. The shell has good sealing performance and can work under harsh conditions< Br/>
4. And the action is reliable, the performance is stable, the frequency response is fast, and the service life is long< Br/>
5. Strong anti-interference ability, waterproof, shockproof, corrosion-resistant, and other characteristics< Br/>




Usage
The pull rope switch is mainly used as a protective device for emergency parking of conventional belt conveyors, shuttle conveyors, skirt type feeding conveyors, bucket elevators, packaging production lines, stacking/reclaiming systems, cranes, excavators, ship loading and unloading systems, horizontal feeders, and other equipment on site. When an emergency occurs, pulling the rope switch at any location along the site can issue a shutdown signal, achieving protection for personnel and equipment< Br/>
Widely used in industries such as machinery, mining, textiles, printing, chemical engineering, metallurgy, light industry, valves, power, security, railways, transportation, cement, ports, etc< Br/>
