Working principle of EXKLT2-2 explosion-proof bidirectional pull rope switch

When an emergency occurs on the belt conveyor site, the steel wire rope tied to the switch can be pulled, and the steel wire rope drives the swing arm to rotate, causing the travel switch inside the switch to operate and generating a stop signal. Prevent the escalation of accidents< Br/>
Overview of EXKLT2-2 explosion-proof bidirectional pull rope switch

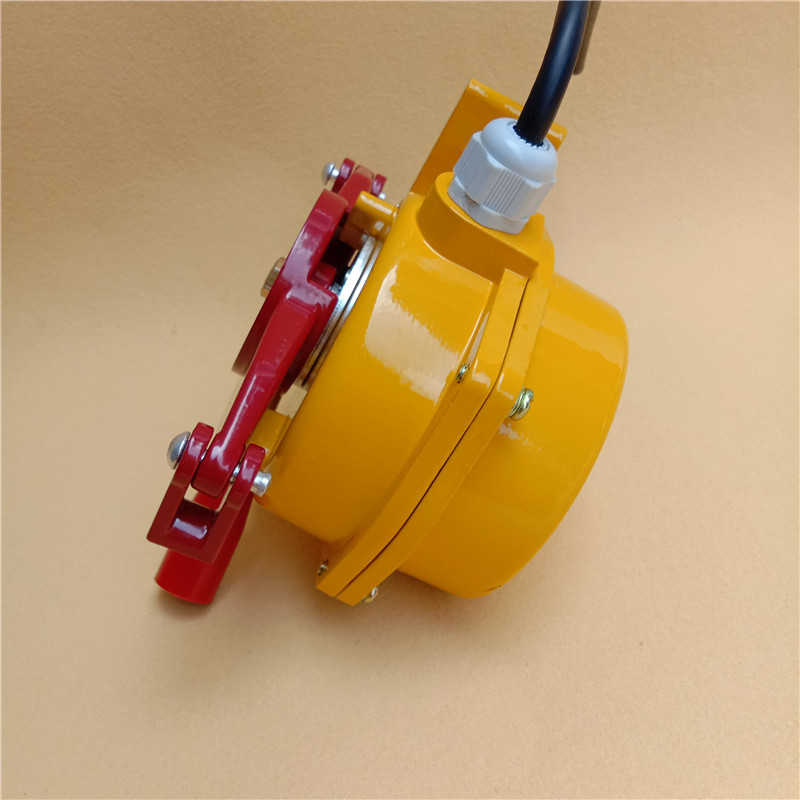

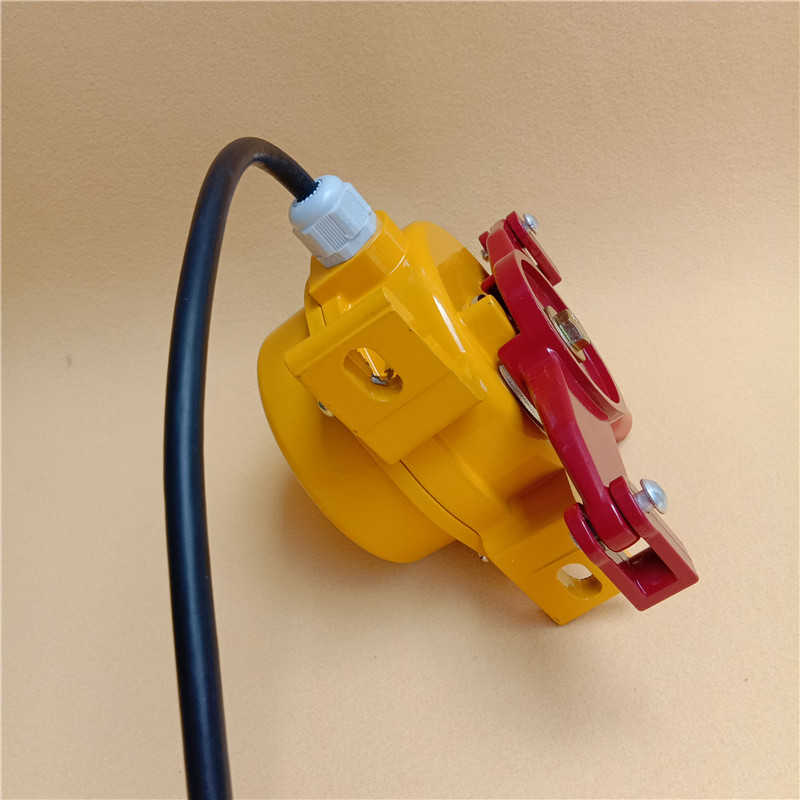

The shell of the EXKLT2 explosion-proof bidirectional pull rope switch is made of metal material casting, which has sufficient mechanical strength to resist the impact of falling rocks, coal blocks, and other objects during underground work without being damaged. The explosion-proof surface set on the switch shell can isolate it, and once it occurs inside the shell, it will have an impact on the working environment outside the shell and underground. When an emergency occurs with the belt conveyor operating underground in a coal mine, the explosion-proof pull rope switch can be activated to immediately stop the machine for warning, prevent the accident from expanding, and ensure personal safety at the work site. This switch is easy to install and use, and operates reliably< Br/>
Working principle
When an emergency occurs on the belt conveyor site, the steel wire rope tied to the switch can be pulled, and the steel wire rope drives the swing arm to rotate, causing the travel switch inside the switch to operate and generating a stop signal. Prevent the escalation of accidents< Br/>

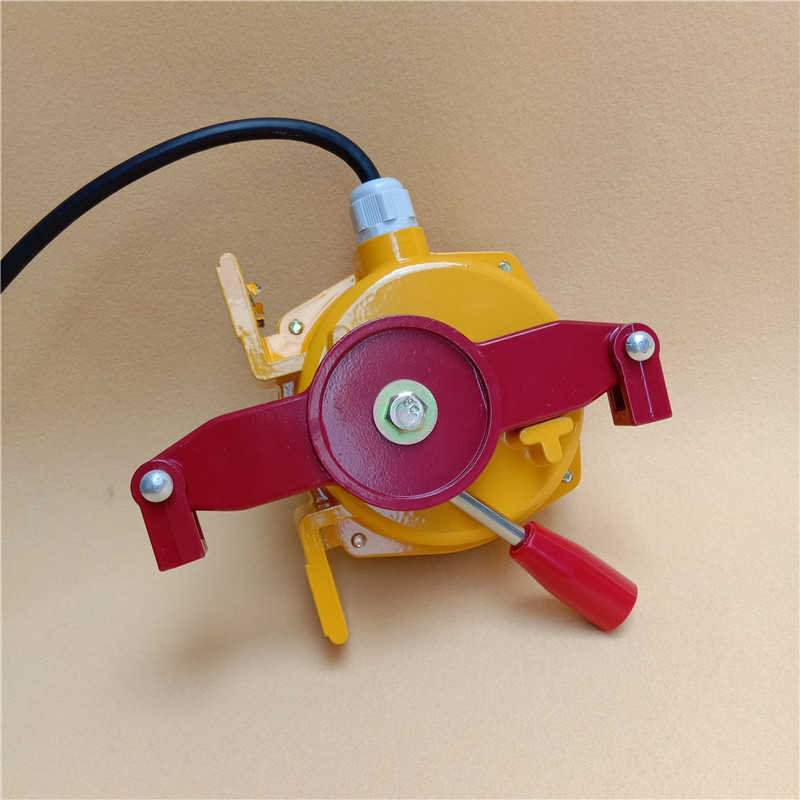

The EXKLT2 explosion-proof bidirectional rope switch adopts manual and automatic reset methods. After troubleshooting, the reset pin can be pulled to reset< Br/>
Wiring method
When this machine leaves the factory, it is equipped with a 1.0 meter long cable, and the wiring method refers to the color indicated on the label< Br/>
Technical parameters; Model/Parameters; Environmental temperature& Nbsp; Relative; Temperature; Atmospheric pressure contact method and quantity; Load current; Electrical lifespan; Action power; Action angle; Extreme angle& Nbsp; Reset method

EXKLT2-1

EXKLT2-2 & Nbsp- 40~50 ℃; 0-95& Nbsp& Nbsp; 80-110kpa& Nbsp& Nbsp; 1 normally open and 1 normally closed& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp; 127VAC/3A> 100000 times; 75-100N; 30& Nbsp& Nbsp& Nbsp; 75& Nbsp& Nbsp& Nbsp& Nbsp; Automatic manual



Installation and wiring:< Br/>
1. The pull rope switch is installed in pairs on both sides of the tape machine, and the installation bracket and the middle bracket of the tape machine are fixed with bolts or fixed. Its position should be lower than the tape and convenient for on-site workers to use. It is advisable to have a distance of about 50m between two rope switches< Br/>
&Nbsp; 2. It is recommended to use plastic coated steel wire rope (or ordinary steel wire rope 1XW19-4 (5) -150 with a wire diameter of 4-5mm). The wire rope is fixed with a rope clamp (6KTH), and a support ring is installed every 3 meters to avoid excessive winding of the wire rope and ensure reliable rope pulling action. Under the premise of ensuring normal operation of the switch, try to tighten the rope as much as possible and reduce the sag of the steel wire rope< Br/>
&Nbsp; 3. For the climbing section of the tape conveyor, the switch spacing and rope length should be minimized as much as possible< Br/>
&Nbsp; 4. Wiring: The rope switch is equipped with a 1.2m long four core rubber sleeve cable when leaving the factory. The core wire is equipped with wire numbers 1, 2, 3, and 4, where 1 and 2 are normally open contacts and 3 and 4 are normally closed contacts< Br/>
